AM8132 CV Mixer

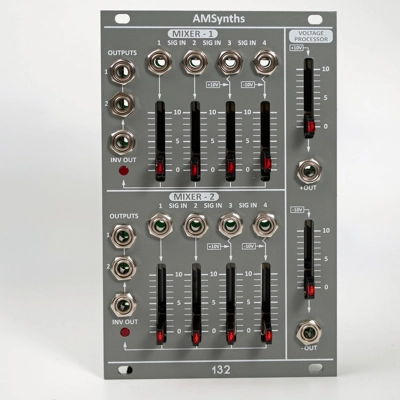

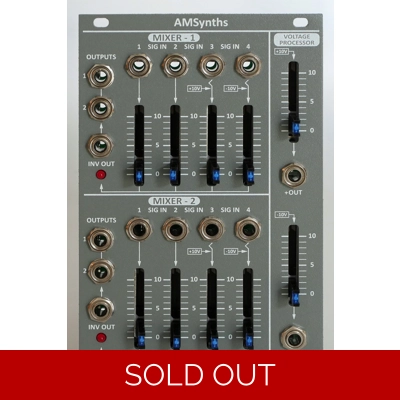

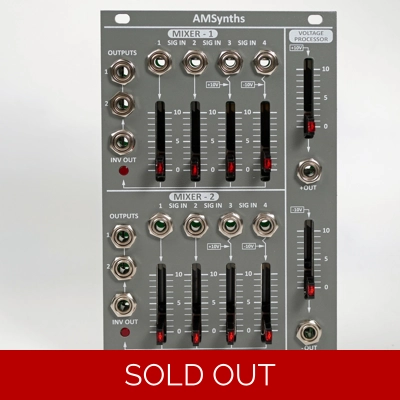

Description This Eurorack module is a replica of the Roland 132 module from the System 100M of 1978. It contains two independent 4-channel mixers that are intended for mixing CV signals togther into the two channel outyputs.

The module also contains two precision voltages; one produces a postive voltage from 0 to +10V, whilst the other produces negative voltages from 0 to -10V. Channel 3 and 4 of each mixer are normalised to the voltage processors.

Each of the mixers has four DC coupled inputs which are mixed using 20mm slide potentiometers with either subtle blue or green LED's. Each mixer has four input jack sockets spread across the module and three outputs on the left hand side of the module (two postive and one inverted). A red LED indicates when the output of each mixer has exceeded about +7V, and is an indication that the mixer is ok and not overloaded.

There are jack sockets for the voltage processor outputs at the right of the module. The module has been designed to use high effeciency LED's to enusre low current consumption.

The module comes with a set of M3 mounting screws and washers, and a standard Doepfer power cable. Please slect which colour LED's you want in the module (BLUE or GREEN).
