AM8002 Mixer and Ring Mod

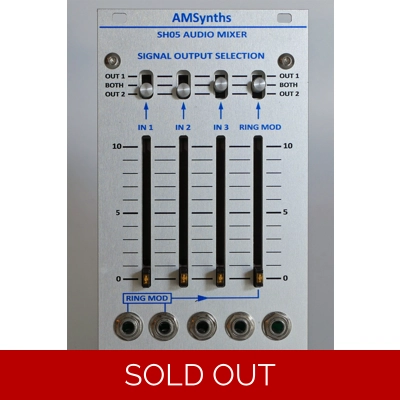

This is an extended replica of the audio mixer and ring modulator in the Roland SH-5 mono synthesizer. Four audio signals can be mixed together and a fourth signal can be generated by the on-board ring modulator from the first two signal inputs.

Each audio signal can be directed to either of two outputs using a three way slide switch. The 45mm slide potentiometers have subtle amber LED's.

Typically the mixer is be used to mix various VCO signals into two different filters or a filter and VCA.

Euro Rack Module:   14HP wide
User Manual:            Download PDF

There are five 3.5 mm jack sockets on the base of the front panel:

• 3x audio inputs (CH1, CH2, CH3)
• 2 audio outputs (OUT1, OUT2)
