Overview We are proud to announce the launch and immediate availability of the first set of SH05 Euro Rack modules, the AM8010 VCA and the AM8007 ADSR and AR. These are based on the circuits in the Roland SH-5 analog synthesizer but with specific upgrades to improve the sound and design.
AM8010 This module is a classic VCA module with two audio inputs and two linear modulation inputs (designed for LFO and Envelope control).
The VCA has stereo outputs with overall level and panning controls. The VCA is designed as the last module in your setup, before connecting to a mixer or audio interface, as the VCA contains a modern output driver IC which matches the hot Euro Rack voltages down to professional audio levels.
There is a red LED that monitors the VCA output prior to final level setting and panning.

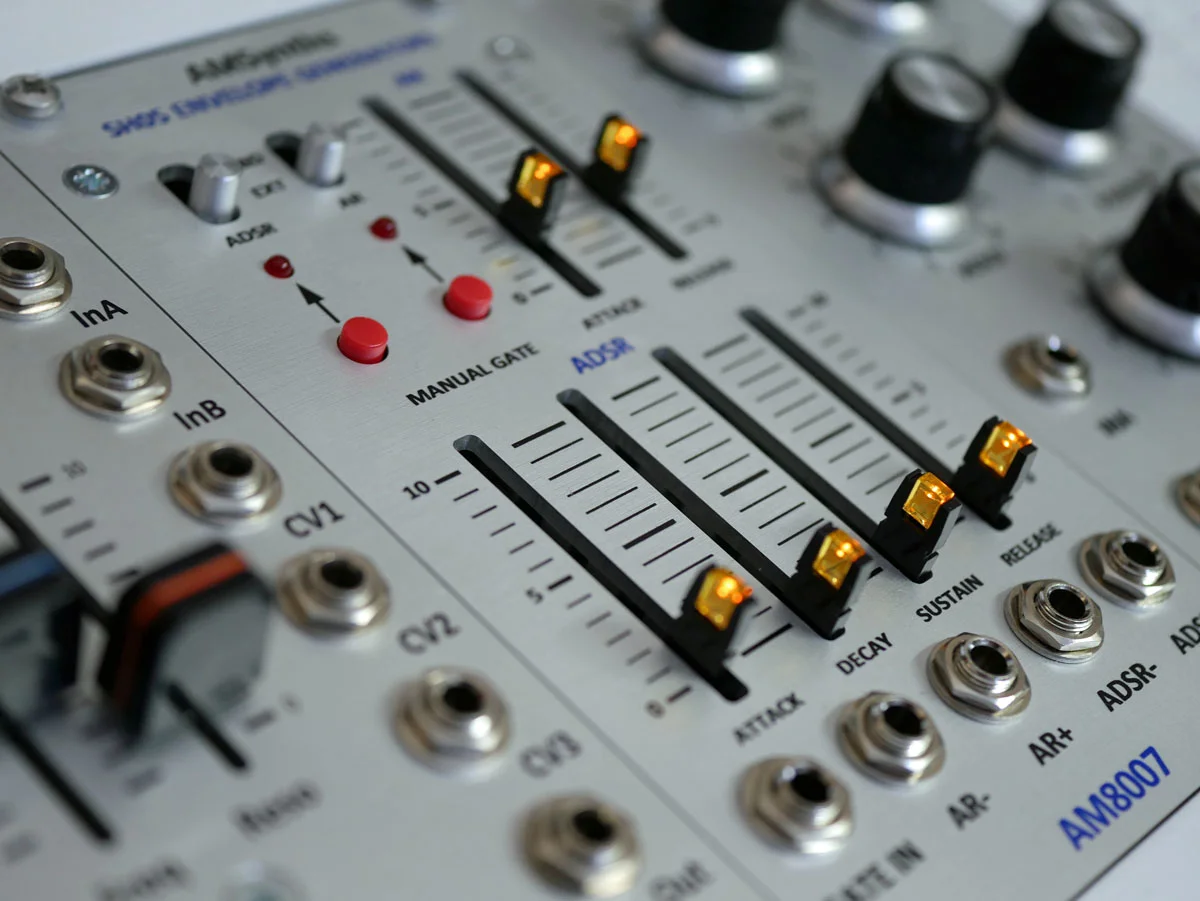

AM8007 This module contains a traditional pair of enveleope generators; both an ADSR and AR. The ADSR has fast 1ms Attack times, whilst the AR has slightly slower and longer shapes.
Outputs from both enevelope genartors are available as inverted as well as non-inverted, with maximum levels of +10V to enable control of a wide range of modules.
The ADSR and AR can be triggered independtly from gat signals from the Dopefer power bus or from the front panel push button switches. There is also a front panel gate input which dricves both enevelope generators.
AM8010 This module is a classic VCA module with two audio inputs and two linear modulation inputs (designed for LFO and Envelope control).
The VCA has stereo outputs with overall level and panning controls. The VCA is designed as the last module in your setup, before connecting to a mixer or audio interface, as the VCA contains a modern output driver IC which matches the hot Euro Rack voltages down to professional audio levels.
There is a red LED that monitors the VCA output prior to final level setting and panning.
AM8007 This module contains a traditional pair of enveleope generators; both an ADSR and AR. The ADSR has fast 1ms Attack times, whilst the AR has slightly slower and longer shapes.
Outputs from both enevelope genartors are available as inverted as well as non-inverted, with maximum levels of +10V to enable control of a wide range of modules.
The ADSR and AR can be triggered independtly from gat signals from the Dopefer power bus or from the front panel push button switches. There is also a front panel gate input which dricves both enevelope generators.
