AM8060SE JP6 VCF
14 HP | AM8060SE JP-6 Filters | User Manual (PDF) | ModularGrid | You Tube
OVERVIEW This module is a replica of the Roland Jupiter 6 (1983) voltage controlled filter which comprises two 2-pole State Variable filters in series.
DESCRIPTION Forty years later the AM8060 contains the same two SVF's, with each of the 2-pole filters switchable into either Low Pass or High Pass mode providing three VCF modes all with variable resonance.
- 24dB Low Pass Filter
- 24dB High Pass Filter
- 12dB Band Pass Filter (two versions)

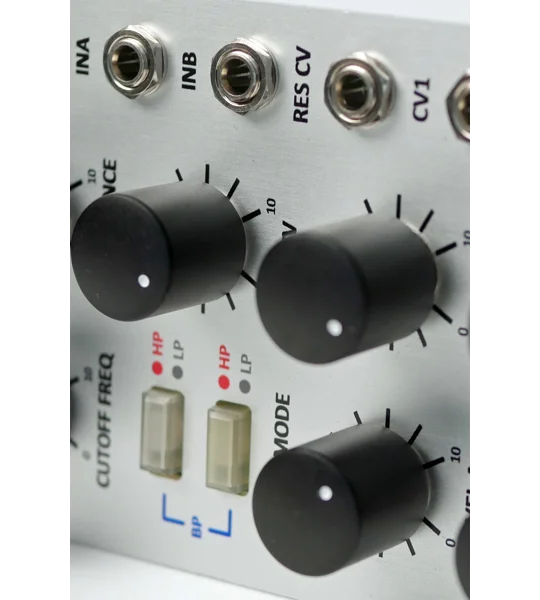

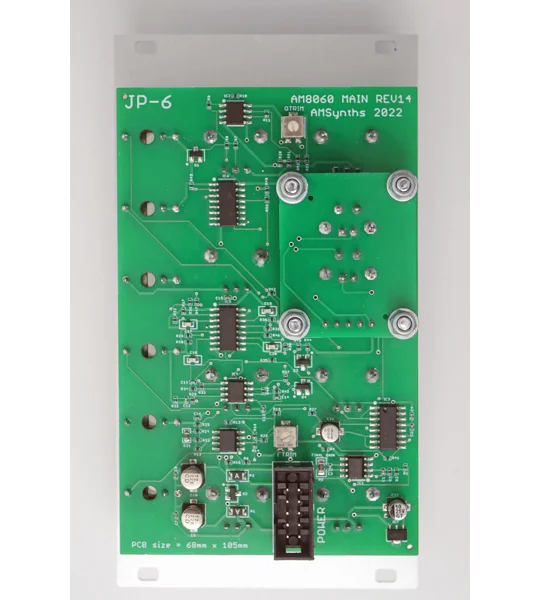

In 2023 the AM8060SE has been re-issued; with Rpar AS3109 chips, a revised resonance control circuit, original Roland JP-6 momentary buttons with LED's and black aluminium control knobs. Resonance and frequency cutoff can be controlled by external CV signals, typically from 0 to +10V.

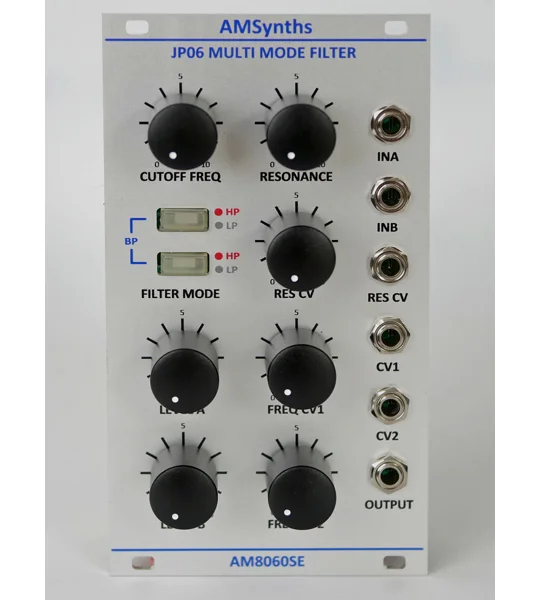

CONNECTIONS There are six 3.5mm jack sockets on the right of the front panel;
- 2x audio inputs
- 2x frequency control voltages
- 1x resonance control voltage
- 1x audio signal output
The module comes with a set of M3 mounting screws and washers, and a standard Doepfer power cable.
MODULE STATUS: PRODUCTION
