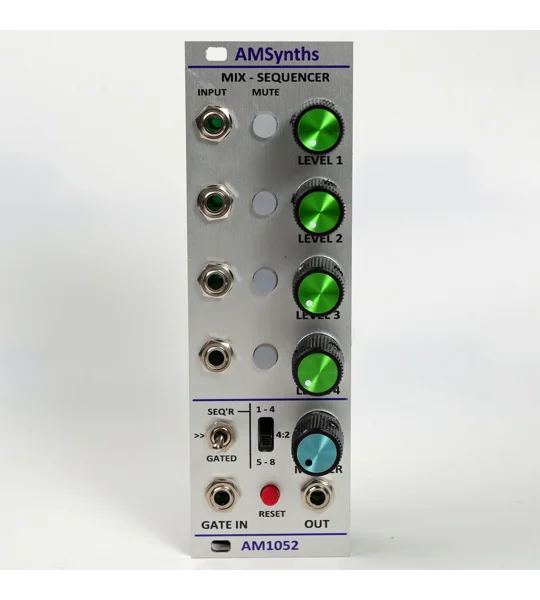

AM1052 Mix Sequncer

Name: AM1052 Mix Sequncer
Brand: AMSynths
SKU: AM1052
Price: 119.00 GBP
Availability: OutOfStock

Out of Stock Tax Included AM1052

Introducing the AM1052 Mix Sequencer, a compact 8 HP utility module that effortlessly mixes four signal inputs into one master output. Whether you're working with audio or CV, this module gives you the flexibility to control your mix with ease. With options for external clock control or integration with the B1027 Sequencer, you can create dynamic sequences that elevate your sound. The AM1052 features a user-friendly interface, allowing you to manually mute inputs or control them via gated signals. Choose between GATE mode for Eurorack clock control or SEQR mode for seamless integration with the B1027. Plus, with a simple toggle switch, you can reset your sequence to position 1 with the press of a button.

Description

8 HP | AM1052 Mix Sequencer | User Manual (PDF) | Modular Grid | You Tube

OVERVIEW The AM1052 Module is a utility module just 8 HP wide that mixes together four signal inputs into one, with optional control from an external clock source or the B1027 Sequencer.

DESCRIPTION The module mixes four signal inputs (audio or CV) into one master output with volume contol. Any input can be manually muted or controlled via gated or seqeuncer control.

The control of the module is located on the lower section of the panel. A three way toggle switch selects the control source:

GATED - A Eurorack controlled clock
>> - No clock source is selected
SEQR - An internal 12-way connection to the B1027 sequencer

In GATED mode the sequence can be reset to position 1 by pressing the red RESET button. If the B1027 is selected a three way slide switch selects how the eight steps of the sequncer are mapped to the four channels;

1 : 4 - Outputs 1 to 4 are selected
4 : 2 - Ouputs 1 to 4 then 5 to 8 are selected
5 : 8 - Outputs 5 to 8 are selected

The green or blue mute buttons on each channel mute the audi or CV from the mixer.

The module comes with a 10-pin power cable, A12-way ribbob cable for attaching to the B1027 Sequencer, a set of M3 x 8mm mounting screws and washers.

PRODUCT STATUS: IN PRODUCTION

Specification

Title	AM1052 Mix Sequncer
Brand	AMSynths
Category	MODULAR 1000
SKU	AM1052
Condition	new
Weight	250.0 g
Width	40.3 mm
Height	128.5 mm
Depth	35.0 mm
HS Code	9209.9400
Country of Origin	United Kingdom
