AM997 Dual Trigger Converter
4 HP Module | AM997 Trigger Converter | User Manual (PDF) | Modular Grid

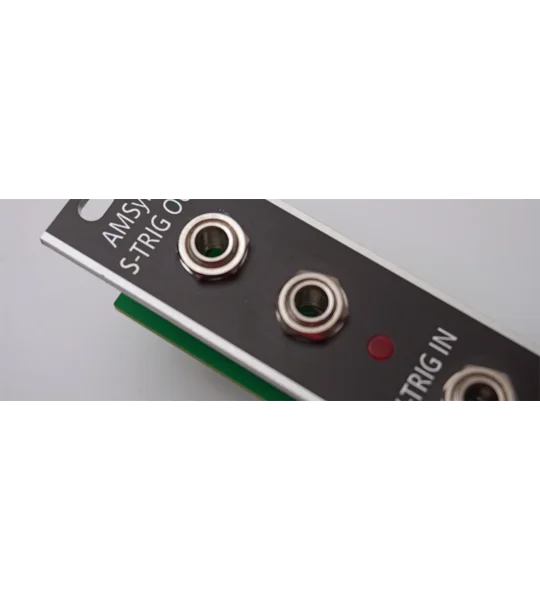

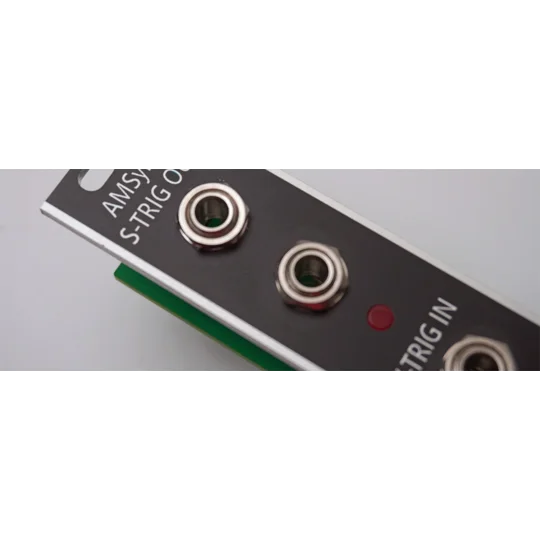

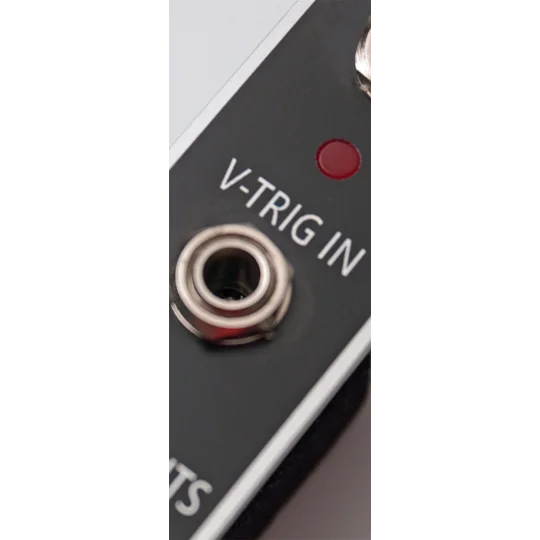

OVERVIEW This is a 4HP module with two channels of V-Trigger to S-Trigger converters. There are two S-Trigger front panel outputs and one internal S-Trigger output for each channel. A red LED for each channel, illuminates when a V-Trigger is present at the input.
DESCRIPTION The 997 provides a cheaper alternative to the Behringer 961 for converting V-Trigger signals such as Gate signals generated by keyboards or sequencers. The internal connections are designed to work with the AMSynths AM993 module, as S-Trigger inputs.
The module is complements the Behringer System 55 Modular System, with a black anodised aluminum 4HP panel. There is a standard 10-pin Doepfer power connector on the rear of the module.

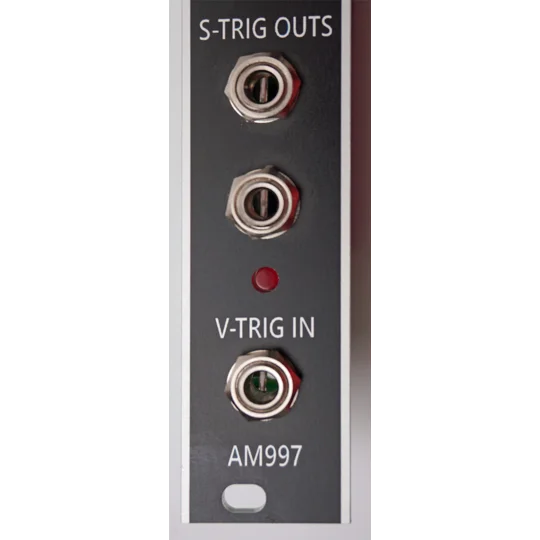

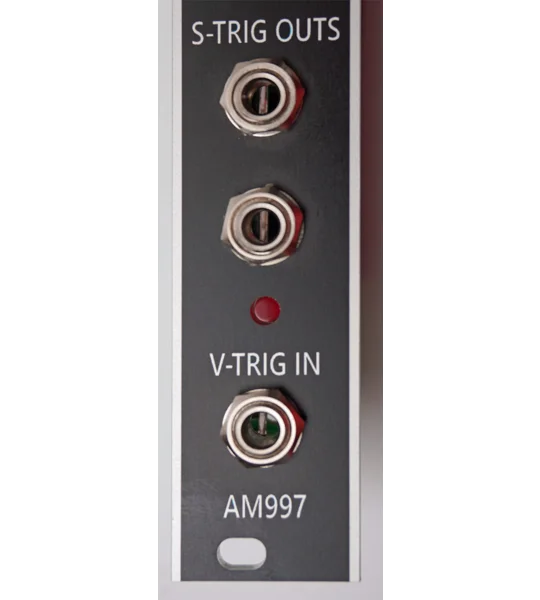

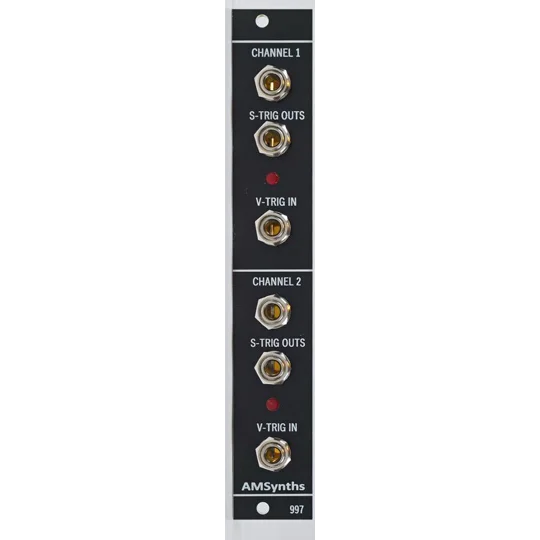

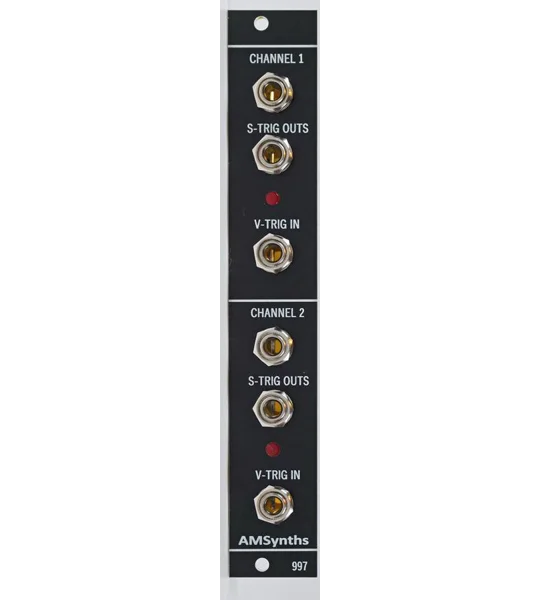

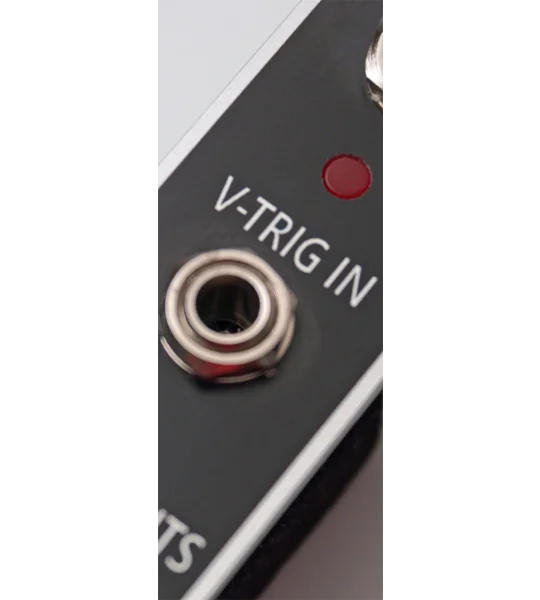

CONNECTIONS There are six 3.5 mm jack sockets on the front panel, for Channel 1 and 2:
- 1x V-Trigger input
- 2x S-Trigger outputs
The module comes with a set of M3 mounting screws and washers, and a standard Doepfer power cable. For 2024 the panel has been upgraded with a higher quality black and silver finish.
PRODUCT STATUS: PRODUCTION
