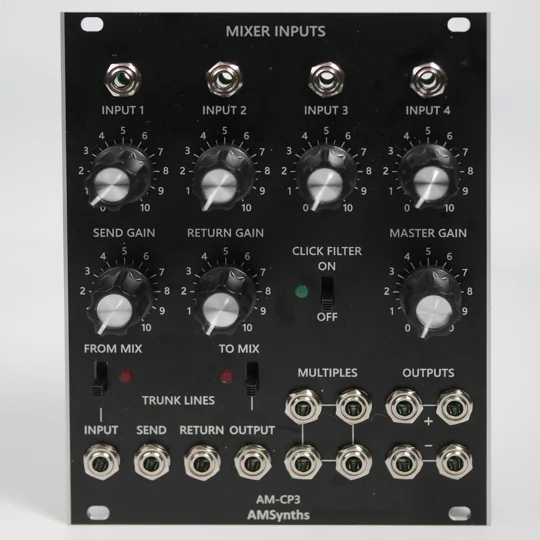

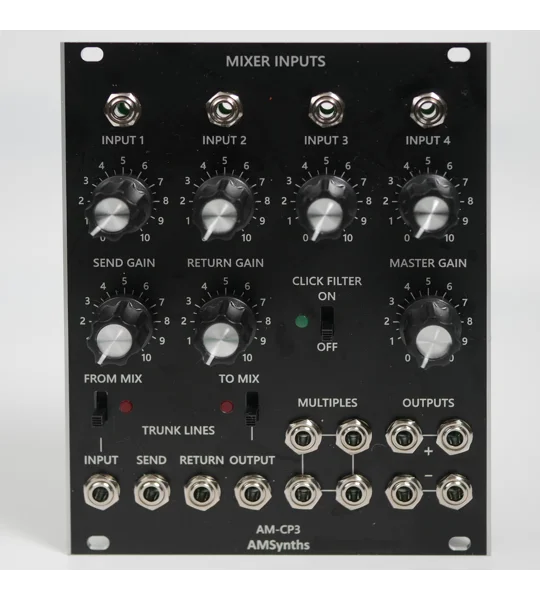

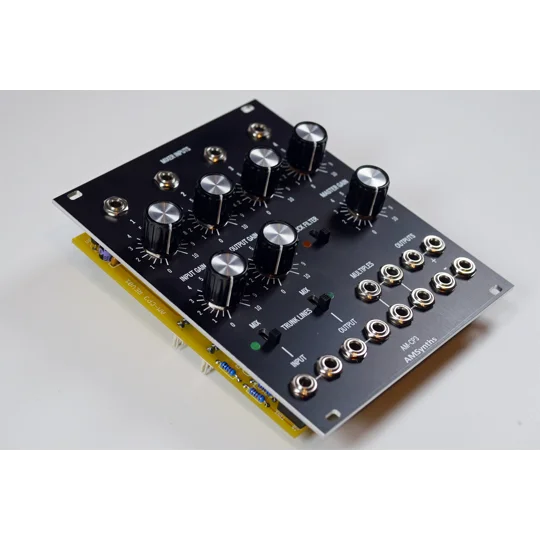

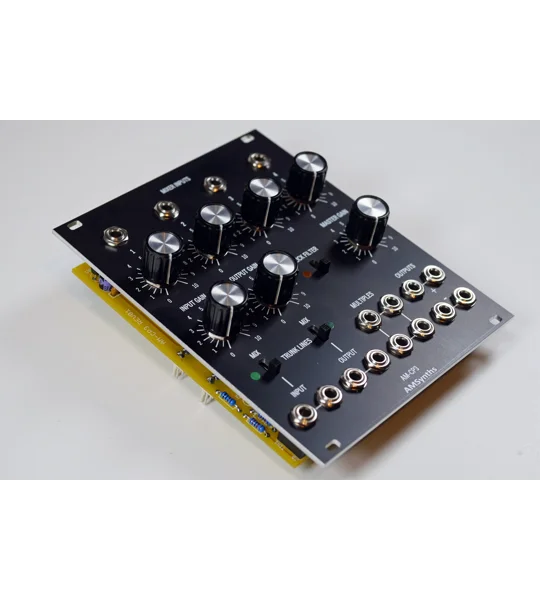

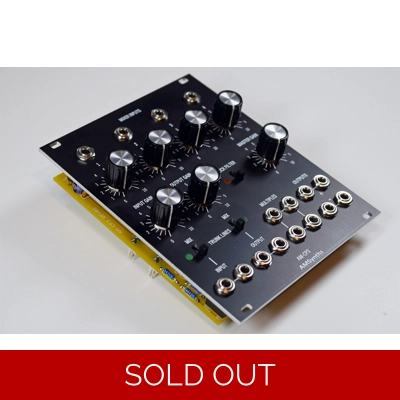

AM-CP3 Console Panel

20 HP | AM-CP3 Control Panel | User Manual (PDF) | ModularGrid | You Tube

DESCRIPTION This module is a recreation of the Moog CP3 Console Panel, but without the oscillator routing which is available as the AM996 module. The original CP3 was part of the 1967 range of Moog Modular synthesziers and appeared in all models I - III, console and portable.

This module provides a four channel mixer with a transistor circuit that overloads into some nice waveform clipping. It is usually used to mix the output of oscillators before passing the combined waveshape onto downstream filters.

The input sockets are conveniently placed at the top of the module to connect to the VCO outputs with the shortest cables. The output has a master gain control and normal and inverterted dual outputs.

FX SEND/RECEIVE The Moog idea of passive trunk lines that connect between the front and rear of the syntheszier has been expanded to become an integrated (or standalone) FX send and receive sub module.

Op amp buffers enable the incoming and outgoing signal levels to be matched to external equipment operating at -10dB, such as guitar pedals or FX processors. Potentiometers control the levels on top of the fixed gain structure, whilst two slide switches (with red LED indicators) select the input/output configuration.

The send and receive front panel jack sockets are mirrored on the rear of the PCB, so that they can be optionally connected to jack sockets at the side or rear of your modular case - for onwards connection to pedals and FX.

CLICK FILTER The AM-CP3 replicates the Moog "Click Filter" by using a slide switch to engage a 1uF polyester capacitor on the mix input, which removes fast moving transients in CV signals (clicks) or acts as a high pass filter to audio signals.

MULTIPLES The modules also has four interconnected jack sockets arranged as multiples.

The AM-CP3 module is designed to complement the Behringer System 55 Modular System,  and enable customers to build an accurate Moog Modular system. The module has a 20 HP black anodised aluminum, with etched edges and graphics. It comes with a set of M3 mounting screws and washers, two screened cables for the trunk lines, and a standard Doepfer power cable.

PLEASE NOTE: The two external jack sockets, for the trunk lines, need to be bought, fitted and connected to the AM-CP3 by the customer. The PCB has two rear facing 3.5mm jack sockets to enable connection.

PRODUCT STATUS: PRODUCTION
