AM-CP1 Control Panel

6 HP Module | AM-CP1 Control Panel | User Manual (PDF) | Modular Grid | You Tube

Description The AM-CP1 module provides access to the internal bus that connects AMSynths utility modules in a Moog Modular synthesizer replica. It provides the same functionality as the Moog CP1 control panel module (and the CP9 - minus the power switch).

The AM-CP1 has three pairs of Pitch and V-trigger signal inputs that can be internally connected to the AM996 (Pitch) and the AM993 (S-Trigger converted V-Triggers) via two internal 6-way cables. This replicates the internal bus structure of the Moog Modular, reducing the need for external patch cables.

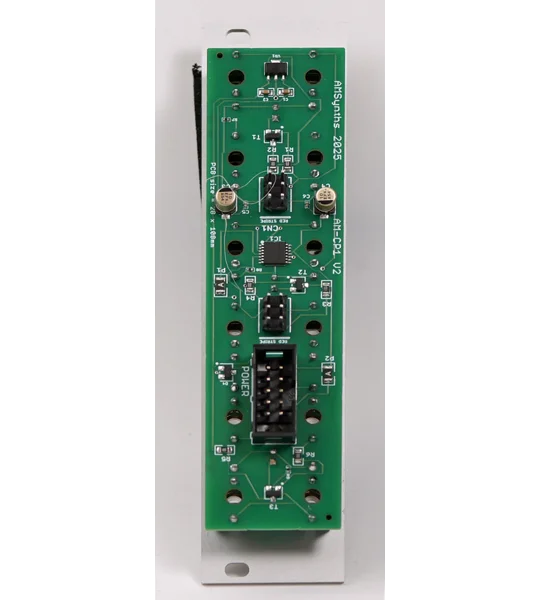

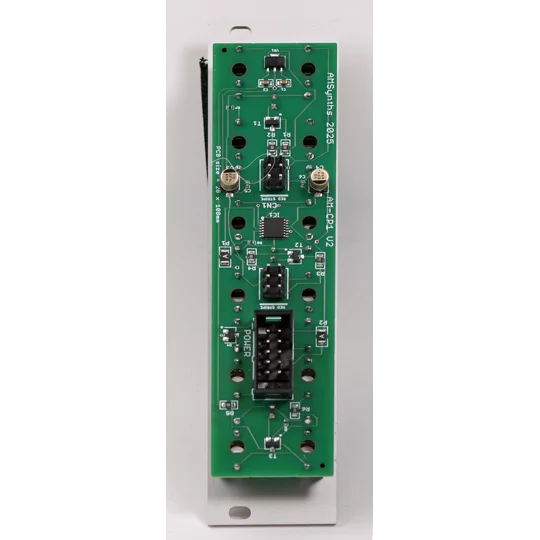

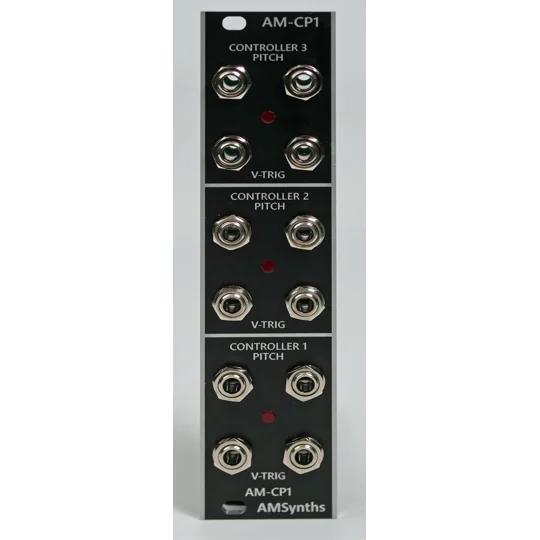

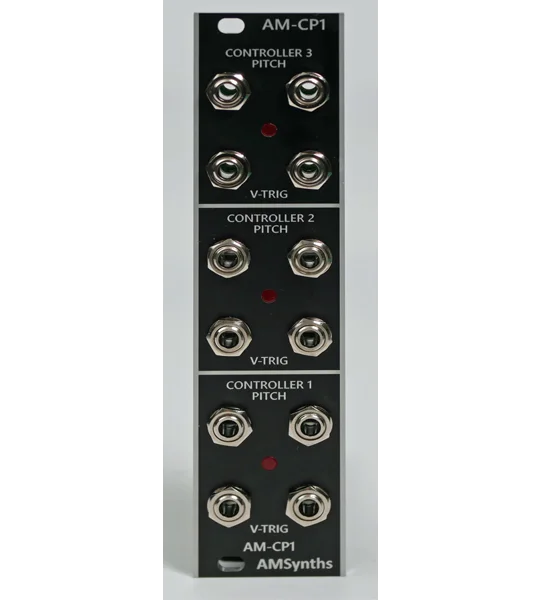

CONNECTIONS There are three pairs of CV and V-trigger inputs, with 3.5 mm jack sockets on the black anodised aluminium front panel. The V-Trigger is Eurorack compatible and connects to the AM-993, which does the S-Trigger conversion.

The Pitch CV signals drive VCO frequency via the AM996 module (and AM921A/B Daugher Boards), which is internally connected using a 6-way IDC cable.

The V-Trigger signals drive the AM993 Router module, which is internally connected via a 6-way IDC cable. No S-Trigger conversion is applied on the AM-CP1.

The module comes with a 10-pin power cable, a set of M3 x 8mm mounting screws and washers and two 6-way internal IDC bus cables (2x 45cm in length).

PRODUCT STATUS: IN PRODUCTION
