AM-CP4 Console Panel

8 HP | AM-CP4 Console Panel | User Manual (PDF) |You Tube|ModularGrid

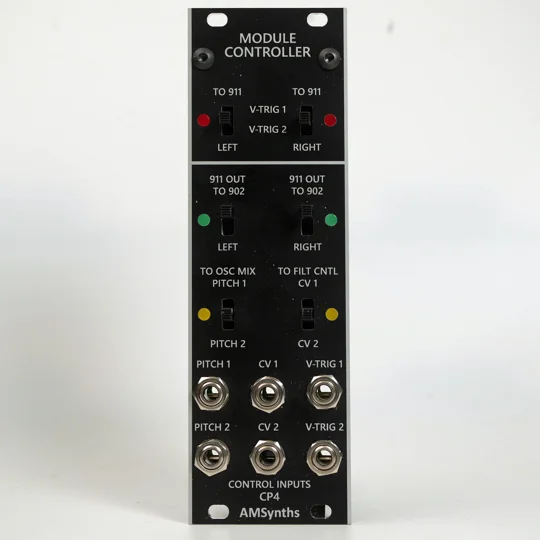

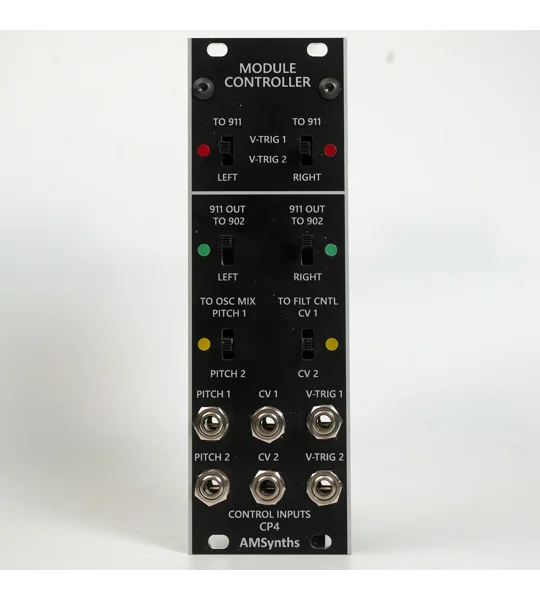

OVERVIEW This module is recreation of the Moog CP4 Console Panel with oscillator CV and filter CV routing, plus Trigger & Envelope Control for two sets of 911 and 902 modules. The CP4 was part of the  1967 range of Moog Modular modules, and seen in the IP and IIC. The nearly identical CP4A was part of the 1973 range, and seen in the Moog 35.

This handy module reduces external patching by providing CV and Trigger routing via switches. with LED indicators The AMSynths version contains dual V to S-Trigger converters, which are Eurorack compatible.

PLEASE NOTE: SOME SOLDERING IS NEEDED TO INSTALL THIS MODULE.

DESCRIPTION The top section of the panel has two 3-way switches to link the attached 911 Envelope Generators to either V-Trigger Input 1 or 2 or OFF. The 911's are attached via Daughter Boards and an internal 6-pin cable. The LED colour is RED when a V-trigger is selected.

The middle section of the panel has two 2-way switches to link the attached 911 CV ouputs to the 902 control inputs. The 902 are attached via Daughter Boards and an internal 6-pin cable. The LED colour is ORANGE when the the 902's are selected.

The bottom sectionof the panel has two 3-way switches to link the attached 921A/921B and 904A/B to the Pitch 1 and 2 inputs and CV 1 and 2 inputs. Both the oscaillators and filters require Daugher Boards to connect to the two cables. The LED colour is GREEN when the output is selected.

The AM-CP4 module has a 12V Eurorack power inlet socket, six slide switches and six LED’s. The module connects to Behringer 902, 911, 921A/B and 904A/B via supplied internal 6-way cables.

The connections to the Behringer modules require Daugher Boards to be fiited on the rear of the modules, no PCB traces need to be cut.

The AM-CP4 module is designed to complement the Behringer System 55 Modular System,  and enable customers to build an accurate Moog IP, IIC or 35 system. The module has a 8HP black anodised aluminum and comes with a set of M3 mounting screws and washers, and a standard Doepfer power cable.

CONNECTIONS The AM-CP4 has the following connections and controls:

• 2x Pitch CV inputs
• 2x Filter CV inputs
• 2x V-Trigger inputs
• 4x DP3T switches
• 2x DPDT switches

WHAT'S IN THE BOX This item includes the following:

• 1x AM-CP4 Module with etched black aluminum panel
• 1x 10-pin to 16-pin Eurorack power cable
• 4x black M3 x 8mm mounting screws and washers
• 1x AM904A Daughter Board
• 1x AM904B Daughter Board
• 1x AM921A Daughter Board
• 3x AM921B Daughter Board
• 2x AM911 Daughter Board
• 2x AM902 Daughter Board
• 4x 6-way ribbon cable for connecting the AM-CP4
• 30x 6mm hex plastic PCB spacers

PRODUCT STATUS: IN PRODUCTION
