AM-CP1 Control Panel

6 HP Module | AM-CP1 Control Panel | User Manual (PDF) | Modular Grid | You Tube

Description The AM-CP1 module provides access to the internal bus that connects AMSynths utility modules in a Moog Modular synthesizer replica. It provides the same functionality as the Moog CP1 control panel module (and the CP9 - minus the power switch).

The AM-CP1 has three pairs of Pitch and V-trigger signal inputs that can be internally connected to the AM992, AM993 and AM996 modules via a 6-way cable.  The module has two 6-pin headers to internally connected to these modules. This replicates the internal bus structure of the Moog Modular, reducing the need for external patch cables.

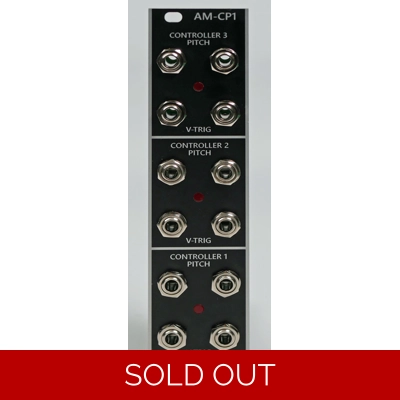

CONNECTIONS There are three pairs of CV and V-trigger inputs, with 3.5 mm jack sockets on the black anodised aluminium front panel. The V-Trigger is Eurorack compatible and is translated to S-Triggers by the appropriate AMSynths module (AM993, AM-CP4) for the 911 Envelope Generators.

The CV signals can be used to drive VCO frequency, VCF frequency cutoff or other modulation destinations. They are internally connected to the AM992 and AM996 modules.

The module comes with a 10-pin power cable, a set of M3 x 8mm mounting screws and washers and two 6-way internal bus cables.

PRODUCT STATUS: IN PRODUCTION
