AM964 Trigger Controller

4 HP | AM964 Trigger Controller | User Manual (PDF) | Modular Grid | You Tube

OVERVIEW The AM964 Module is an enhanced replica of the Moog Triggered Controller which was created in 1969 for a one-off performance in New York. This utility module is just 4HP wide and can be used to generate two CV's for any tyoe of module, The voltages can be set manually or by dynamic sequencer or keyboard control. The AM964 is especially useful in live performances.

DESCRIPTION The module can generate two variable output voltages that are set by the control knobs, and activated by either the white latching push button at the base of the panel or by a V-trigger signal that is patched into the module. A LED indicates when the voltages are set on.

The range of each voltage can be set independently from 0 - 2V for pitch control or from 0 - 6V for CV modulation control. The AM964 can control any module that accepts CV inputs and thanks to the on-board precision reference voltage it can be used as a stable source of pitch CV's.

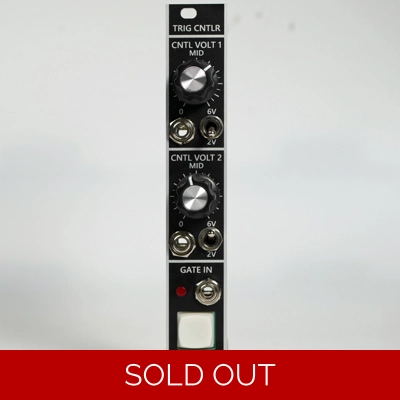

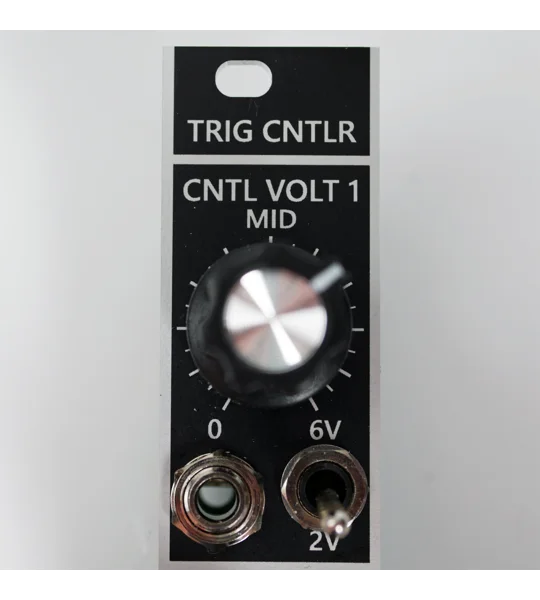

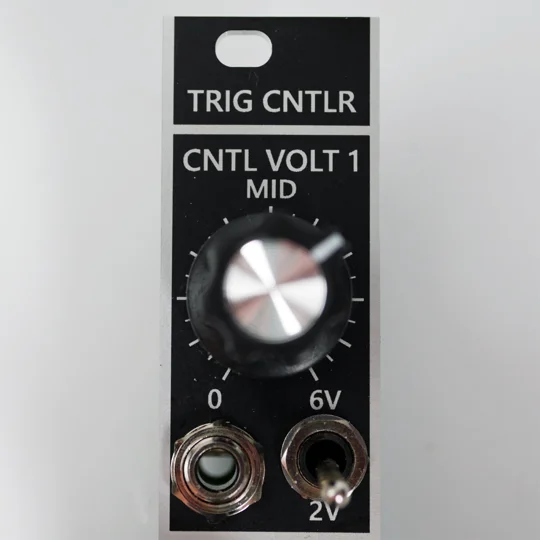

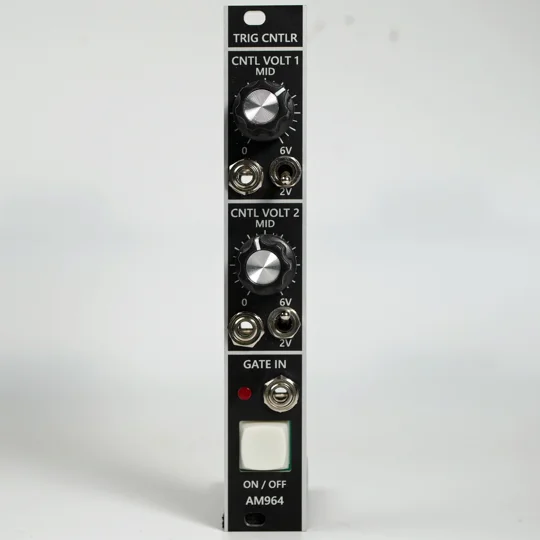

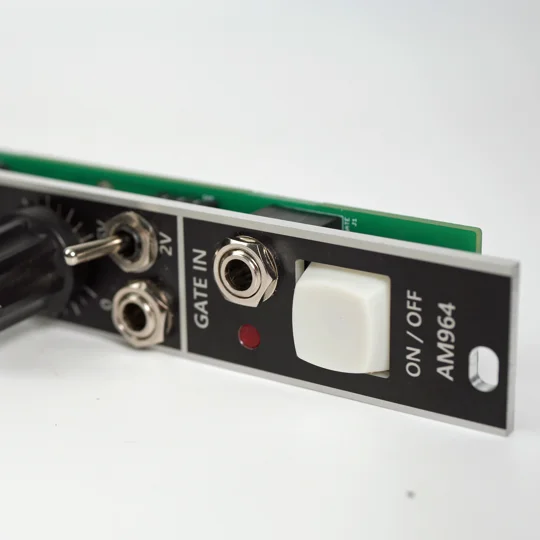

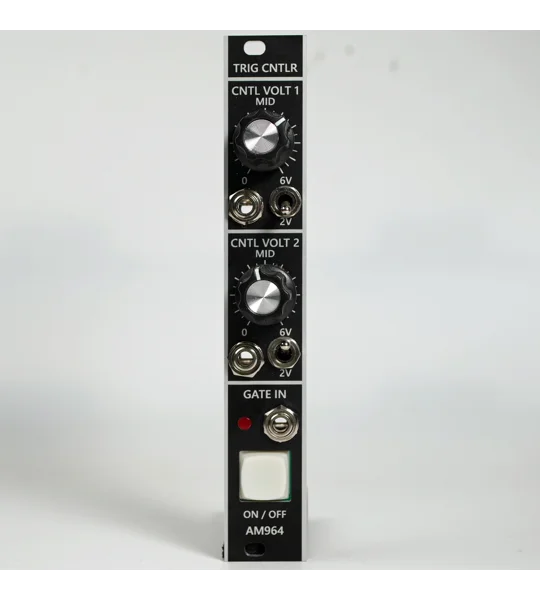

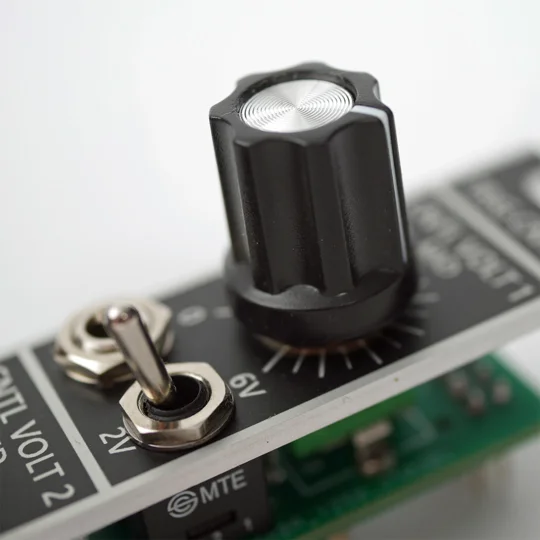

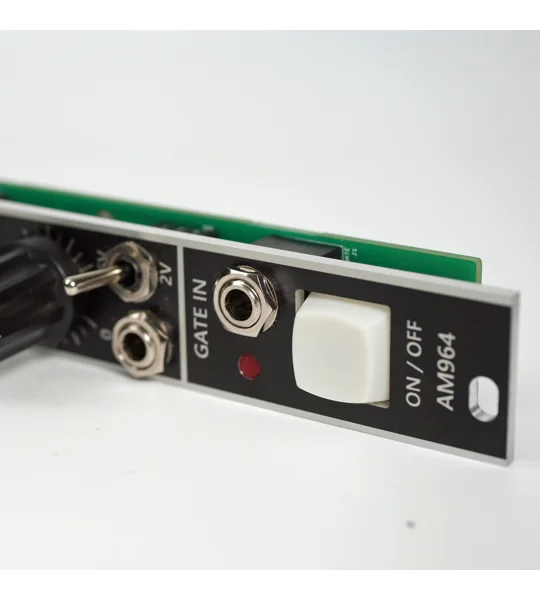

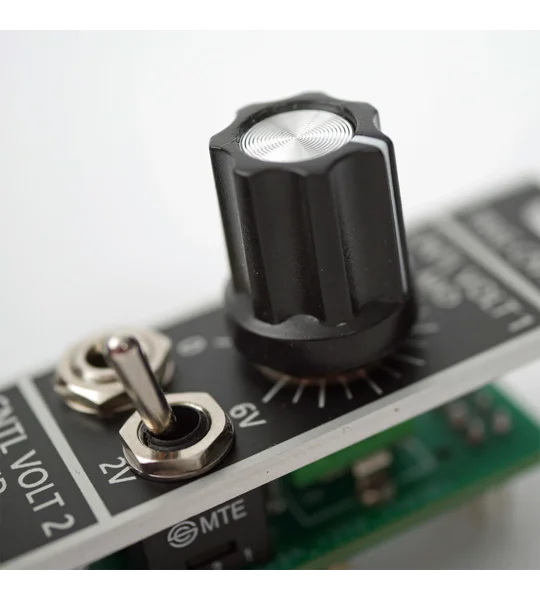

CONTROLS & CONNECTIONS For each control voltage there is an output jack socket, a range toggle switch and a control potentiometer. At the base of the panel is a white momentary push button which latches the CV's on and off and the V-trigger input jack socket and a LED that illuminates when the voltages are on.

The module comes with a 10-pin power cable, a set of black M3 x 8mm mounting screws and washers.

PRODUCT STATUS: IN PRODUCTION
