AM995 Attentuate

4 HP | AM995 Attenuate | User Manual (PDF) | Modular Grid | You Tube

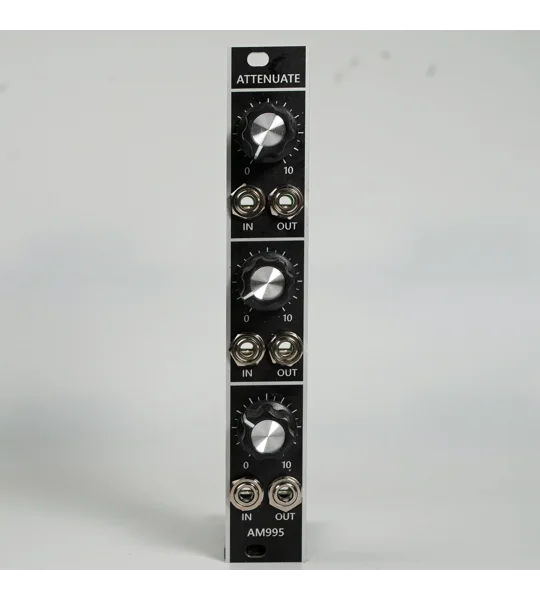

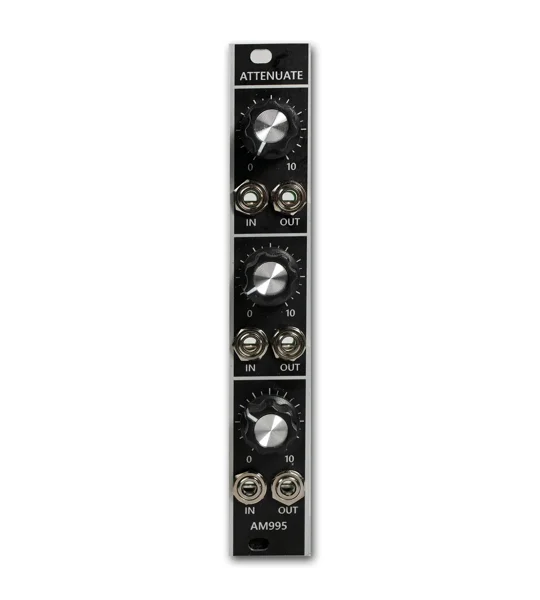

OVERVIEW The AM985 Module is a replica of the original Moog 995 Attenuation module but at a Eurorack friendly width of just 4HP. This means you can install twice as many attenuators than using the Behringer 995.

DESCRIPTION The module is used to attenuate up to three CV or audio signals for VCO's, VCF's and VCA's in your setup. Most Moog style modules do not have attenuators built in, so it is important to add these.

The AM995 retains the original normalisation scheme whereby the input of channel 3 is normalised to the input of channel 2, and the same normalisation for channel 1 and 2. This enables CV or audio signals to  be cascaded to different modules, each with their own level setting potentiometer.to the module.

The AM995 is a passive module and requires no power.

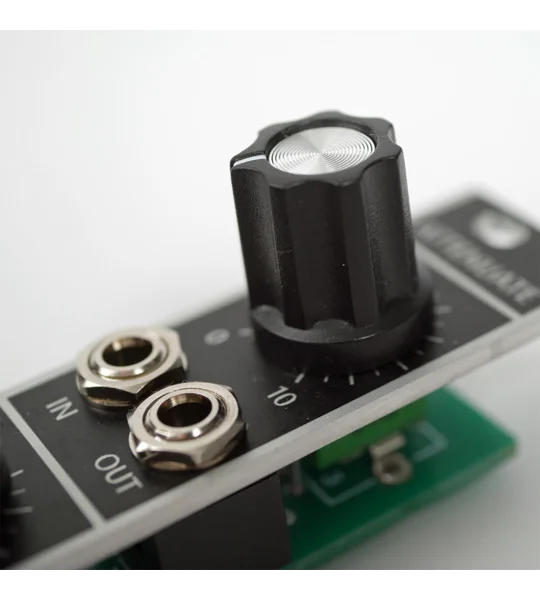

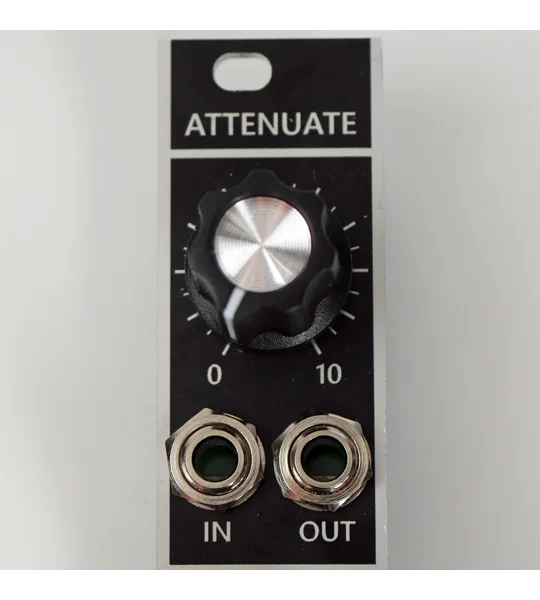

CONTROLS & CONNECTIONS For each channel there is an input and output jack socket, and a high quality control potentiometer. The module uses Moog style control knobs that match the AMSynths Moog inspired modules.

The module comes with a set of black M3 x 8mm mounting screws and washers.

PRODUCT STATUS: IN PRODUCTION
