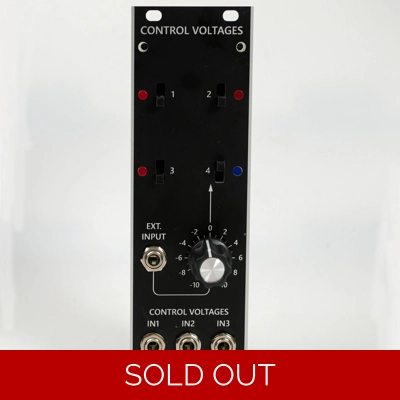

AM992 Control Voltages

8 HP | AM992 Control Voltages | User Manual (PDF) | Modular Grid | You Tube

OVERVIEW This module replicates the Moog 992 Control Voltages with four CV inputs and internal patching for driving Behringer 904A and 904B filter modules. The module is designed to reduce the need for  patch cables and to replicate the CV internal bus structure of the original Moog Modulars.

The module AM992 is supplied with PCB Daughter Boards that attach to the rear of the 904A and 904B and a cable that interlinks them with the AM992.

PLEASE NOTE: A small amount of Synth DIY is needed to solder wires to the back of the Behringer modules from the Daughter Boards.

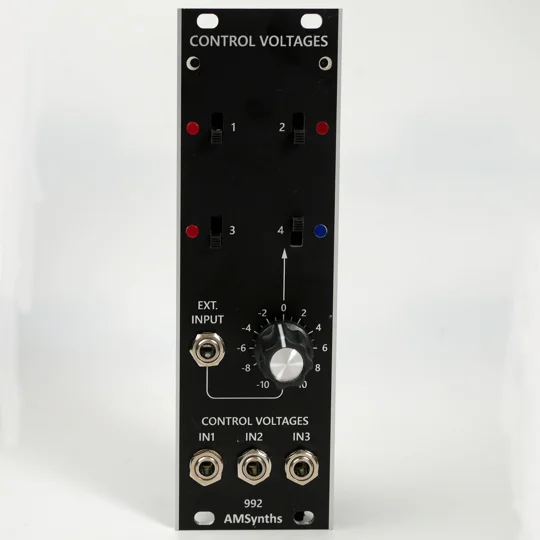

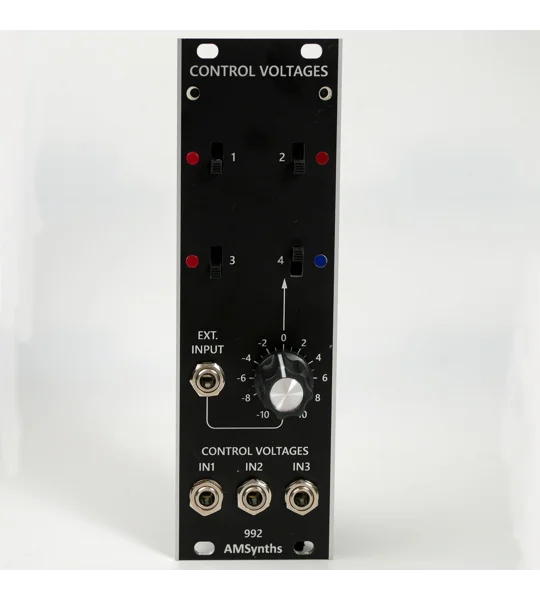

DESCRIPTION All four inputs have front panel jack sockets, with the first three inputs connected to an internal IDC 6-pin bus which is normalised to the front panel jack sockets. The fourth CV input goes via an attenuator potentiometer and is mixed into the other three signals using a precision Op Amp.

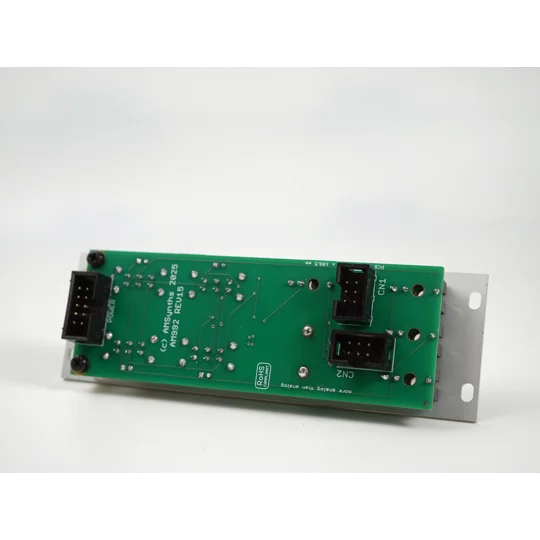

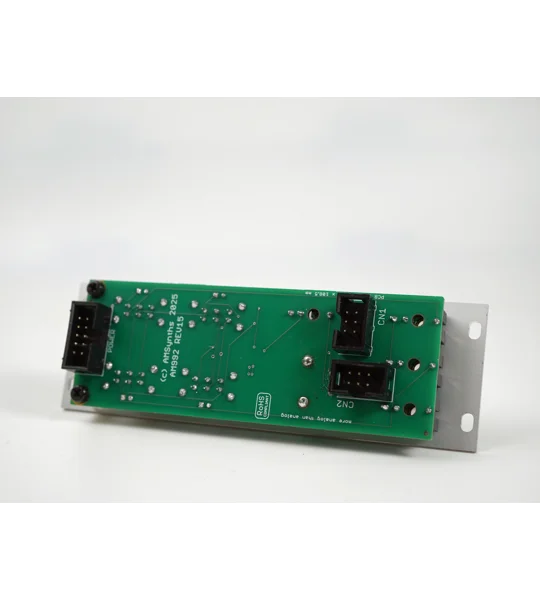

The IDC 6-wire bus contains three sets of CV signal and three sets of V-Trigger signal. It is internally connected ("behind the module") to receiving and transmitting Eurorack modules manufactured by AMSynths. Transmitting modules have external jack sockets for patching in Euorack compatible pitch, modulation and gate signals.

Receiving modules include the AM996 and AM992, transmitting modules include the AM-CP1 and AM-CP4.

WHAT'S IN THE BOX This item includes the following:

• 1x AM992 Module with etched black aluminum panel
• 1x 10-pin to 16-pin Eurorack power cable
• 2x black M3 x 8mm mounting screws and washers
• 1x AM904A Daughter Board
• 1x AM904B Daughter Board
• 1x 6-way ribbon cable for connecting the AM992 to the Behringer 904A and 904B.
• 6x 6mm plastic PCB spacers

PRODUCT STATUS: IN PRODUCTION
